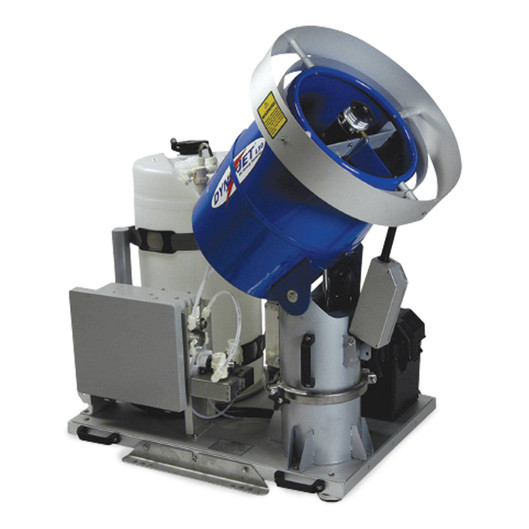

DYNA-JET MODEL L30 ULV FOGGER
DYNA-JET MODEL L30 ULV FOGGER
Share
Dyna-Jet® L30 is the quietest operating ULV machine in the world.
- Distinctive remote control nozzle head allows for multi-positioning of the spray to insure thorough coverage over the desired area
- Produces the industry's most consistently sized droplets
- Entirely and exclusively electric, no exhaust emission operation makes late night adulticiding extremely residential and neighborhood friendly
- Chemically resistant, lightweight construction delivers years of trouble-free, low maintenance use
- Optional Doppler radar and GPS speed flow control capabilities are also available
LONG LIFE AND QUIET OPERATION
The most recent product release from Curtis Dyna-Fog, the Dyna-Jet® L30 was designed to be the quietest operating, highest quality ULV machine on the planet. Combining quiet operation, lightweight structure, with no harmful exhaust emissions, the Dyna-Jet® L30 is perfect for practically any application requiring outdoor or indoor space spraying.
The Dyna-Jet® L30 is designed to dispense formulations at flow rates of up to 14 ounces a minute (414 ml/min) through a precision FMI Pumping System. The FMI piston pump (standard on the Dyna-Jet® L30) can produce up to 20 ounces per minute (591 ml/min). The high speed rotary atomizer is constructed of a safe, high density polyethylene (HDPE) material and is balanced in two planes. An extra, balanced atomizer and atomizer dust cover is included with the unit.
When the Dyna-Jet® L30 is equipped with the COBRA™ System, the rate of pump flow is automatically controlled in relationship to the speed of the vehicle without the need for changing the pump setting. Atomizer speed is controlled by closed loop circuitry, which ensures steady and constant operation. A digital tachometer/hour meter mounted on the Dyna-Jet® L30 allows for monitoring the accumulated machine run time and atomizer speed. Another feature of the Dyna-Jet® L30 is the atomizer discharge direction can be altered at the unit horizontally 360°, or from the remote control vertically 60°. The compact and rugged remote control includes features such as a digital battery meter with color bar graph for constant monitoring of battery level during any time of day or night and lighted switches. The Dyna-Jet® L30 is shipped with stainless steel quick-release mounting rails.
OPTIONAL EXTRAS:
- Water resistant machine cover
- Radar flow control
- Dyna Trax GPS tracking system
- Large capacity filter kit
For purposes of maintaining the highest quality product, manufacturer reserves the right to make technical modifications at any time without prior notice.
Specifications: Dyna-Jet L30 | |
---|---|
Nozzle Motor: | Electric, 12 volt, brushless |
Current Draw: | 30 amps maximum @ 14 oz/min (414 ml/min) |
Nozzle Sleeve: | Porous medium |
Nozzle Head: | Adjustable, 60 vertical, 360 horizontal |
Noise Level: | 70 db at the nozzle |
Blower: | 1350 cu ft/min (38.2 cu m/min) |
Droplet Size: | 90% below 20 microns |
Pump: | FMI 0-20 oz/min (591 ml/min) Maximum pre-set flow rate 14 oz/min (414 ml/min) |
Remote Control Features: | Master on/off, formulation/flush, digital battery & cumulative hour meter |
Formulation Tank: | 15 gallons (57 liters), HDPE, lockable cap |
Flush Tank: | 1 gallon (3.8 liters), HDPE |
Machine Weight | |
Empty: | 105 lbs (47.6 kg) |
With Optional Battery: | 147 lbs (66.5 kg) |
Machine Dimensions | |
Length x Width x Height (in): | 44 x 29 x 39 |
Length x Width x Height (cm): | 112 x 74 x 99 |
Shipping Dimensions | |
Length x Width x Height (in): | 46 x 36 x 46 |
Length x Width x Height (cm): | 117 x 91 x 117 |
Weight: | 223 lbs (101.6 kg) |
Optional Battery Add: | 43 lbs (19.5 kg) |
